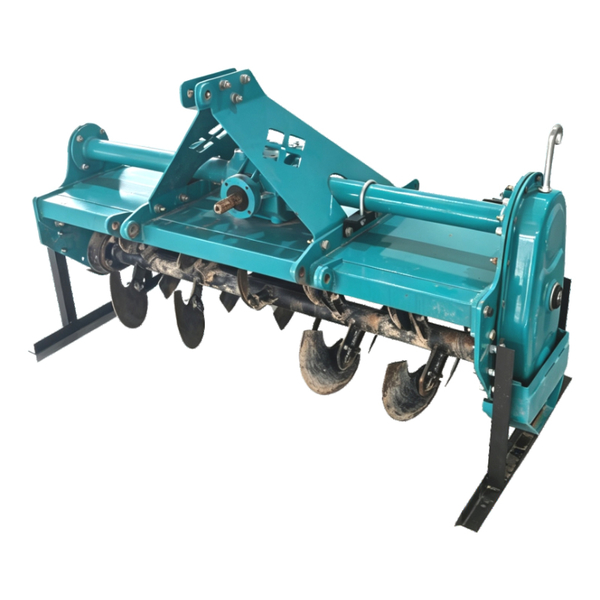

1Q-130 Ridger
Describe：
SIFANG brand 1Q-130 Ridger features Uses a proven three-point hitch design for connection and power transmission to the rotary tiller.Features a patented former for superior ridge shape.Enhanced structural strength and optimized overall dimensions.Research conducted on blade shaft angle and oil seal seat sealing to improve ridger service life. Suitable for tobacco fields, rapeseed, taro, greenhouse vegetable plots, and herb cultivation.
Tel：+86-579-87214052
Parameter
| Parameter | Unit | Design Value |
| Overall Dimensions (L×W×H) | mm | 1588×567×722 |
| Required Power | hp | 40 |
| Attachment Type | / | Three-point hitch |
| Working Width | m | 1.3 |
| Tine Rotor Radius | mm | 225 |
| Tilling Depth | mm | ≥100 |
| Ridge Depth | mm | 300-400 |
| Blade Shaft Speed | r/min | 243 |
| Number of Blades | / | 14 (left+7 right) |
| weight | kg | 265 |
