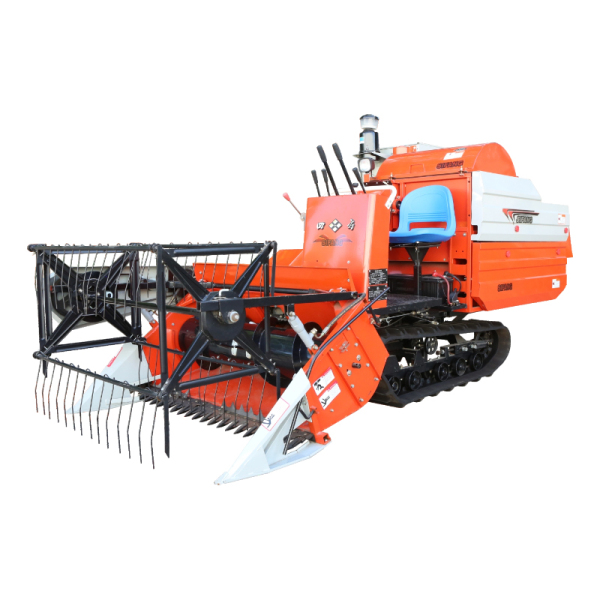

4LZ-1.0 Grain Combine Harvester
Describe：
SIFANG brand 4LZ-1.0 Grain Combine Harvester features Brand-new exterior design — attractive and premium. Light, agile, small turning radius — suitable for mountainous, hilly, and small field conditions.Light weight, low ground pressure, excellent paddy field mobility. Combined fan-and-sieve system with conical fan design, secondary cleaning, low impurity rate.New specialized combine transmission assembly, retractable picking fingers — stable performance, high reliability.External power unit for easy access and maintenance. Ergonomic design, reasonable controls, comfortable operation. Automotive-grade paint finish — colorfast and durable
Tel：+86-579-87214052
Parameter
| Parameter | Unit | Design Value | |
| Model | / | 4LZ-1.0 | |
| Structural type | / | Self-propelled tracked full-feed type | |
| Engine | Rated power | kw | 18.38 |
| Rated Speed | r/min | 2200 | |
| Dimensions (L×W×H) | mm | 3870×1650×1900 | |
| Operating Weight | kg | 1300 | |
| Header Width | mm | 1460 | |
| Feed Rate | kg/s | 1.0 | |
| Minimum ground clearance | mm | 200 | |
| Theoretical Operating Speed | km/h | I：1.19；II：1.68；III：2.56；IV：3.95 | |
| Productivity (Pure Work) | mu/h | 0.06~0.20 | |
| Fuel Consumption per Unit Area | L/mu | ≤22 | |
| Track | Spec (Pitch × Sections × Width) | / | Section × 280mm |
| Track Gauge | mm | 846 | |
| Transmission Type | / | Mechanical (3+1)×2 | |
| Brake Type | / | Friction Disc | |
| Re-thresher Type | / | Auger Peg Type | |
