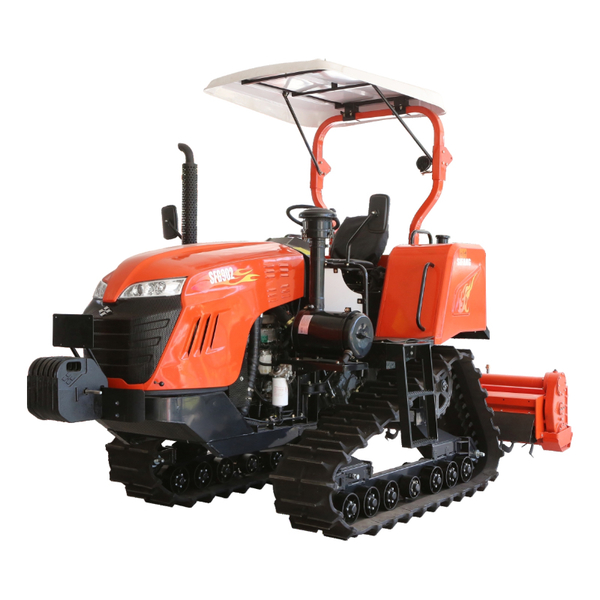

SFG902 Crawler Tractor
Describe：
SIFANG brand SFG902 Crawler Tractor features Equipped with an intercooler for powerful performance; 90 HP meets high-efficiency operational requirements.HST steering combined with mechanical transmission delivers stronger power and lower fuel consumption. Dual-flow differential steering technology, steering wheel control, enables zero-turn spot rotation for flexible operation.Ground pressure as low as 16 KPa. Wide-tooth, tall-lug, lace-pattern, wide-track application ensures paddy field trafficability.Longer track ground contact length, large approach angle, excellent longitudinal stability and obstacle-crossing capability, facilitating easy field-to-field transfer.Integrated lift cylinder configuration with position and draft control functions, plus Category II three-point hitch, ensuring broad implement compatibility.Uses alloy steel tubes, reinforced frame design, and one-piece transmission, delivering high overall reliability.
Tel：+86-579-87214052
Parameter
| Parameter | Unit | Design Value | ||
| Brand | / | Si fang | ||
| Model | / | SF902 | SF752 | SF1002 |
| Type | / | Full-track | ||
| PTO Speed | r/min | 540/760 | 540/760 | 540/760 |
| Overall Dimensions (L×W×H) | mm | 3620×1950×2840 | 3545×1450×2500 | 3620×1950×2710 |
| Track Gauge | mm | 1300 | 1100 | 1300 |
| Min. Ground Clearance | mm | 480 | 412 | 480 |
| Track Ground Contact Length | mm | 1575 | 1380 | 1575 |
| Min. Operating Weight | kg | 2350 | 1700 | 2250 |
| Ground Pressure | kpa | 19.2 | 17.5 | 18.4 |
| Hitch Category | / | Category II | Category II | Category II |
| Engine-Clutch Connection | / | Direct-coupled | ||
| Number of Gears (Fwd/Rev) | / | 9/3 | HST stepless + 3-speed mechanical | （1+1）×2/2 |
| Main Gearbox Speeds | / | 3+1 | / | 1+1 |
| Range Gearbox Speeds | / | 3 | / | 2 |
| Max. Design Speed | km/h | 17.98 | 11.5 | 17.98 |
| Forward Speeds | km/h | Low: 2.33/4.16/7.01 Mid: 4.74/8.61/14.51 High: 5.87/10.66/17.98 | Low: 0~6.04 Mid: 0~7.98 High: 0~11.5 | 0-13.7/9.23 0-6.63/4.46 |
| Engine Type | / | In-line, water-cooled, four-stroke | ||
| Rated Engine Power | kW | 66.8 | 55.2 | 66.8 |
| Rated Engine Speed | r/min | 2400 | 2400 | 2400 |
| Engine Cooling System | / | Water-cooled | ||
