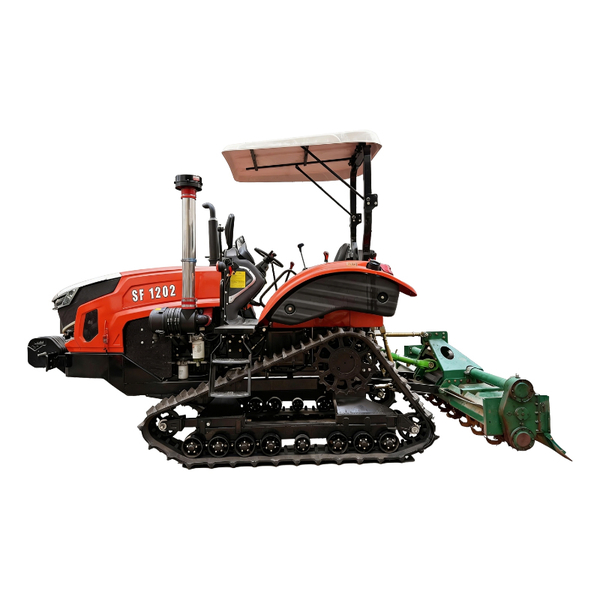

SF1202 Crawler Tractor

Describe:

SIFANG brand SF1202 Crawler Tractor features Powerful Engine: Equipped with a 120 HP (88.2 kW) YTO China Stage IV diesel engine, featuring advanced technology and abundant power. The engine has a high torque reserve and excellent cold-start performance, ensuring stable output under various harsh working conditions and climates. Efficient and Reliable Transmission and Control: Fitted with a 12F+12R synchromesh transmission for smooth shifting, enabling different operational functions.Shuttle shift for forward/reverse, providing an excellent driving experience. Spot differential steering: 360°zero-turn differential steering for flexible operation and doubled efficiency. Stable and Efficient Undercarriage: Bogie-type wheel system with reliable sealing structure makes the entire undercarriage more stable and reliable. Extended and widened tracks provide optimal ground pressure, effectively protecting the soil and enhancing trafficability and anti-sinking capability on wet fields and slopes. Reinforced Frame: Reliable connections and strong resistance to deformation, providing a stable foundation for the machine. Minimum ground clearance ≥ 500 mm, excellent trafficability, adaptable to complex field conditions. Power Lift: The hydraulic lift system features power lift in both directions for enhanced operational capability and reliability. Versatile PTO and Drawbar Capability: The PTO offers dual speed options of 760/1000 rpm, compatible with a wide range of implements.


Tel:+86-579-87214052
Parameter
Parameter Unit Design Value
Brand / Si fang
Model / SF1202
Type / Full-track
PTO Speed r/min 1000/760
Overall Dimensions (L×W×H) mm 4110×2020×2975
Track Gauge mm 1300
Min. Ground Clearance mm 500
Track Ground Contact Length mm 1800
Min. Operating Weight kg 3600
Ground Pressure kpa 22.2
Hitch Category / Category II
Engine-Clutch Connection / Direct-coupled
Number of Gears (Fwd/Rev) / 12+12
Main Gearbox Speeds / 4
Range Gearbox Speeds / 3
Max. Design Speed km/h 14.5
Forward Speeds km/h 4.6~14.5/3.3~10.3/1.2~3.9
Engine Type / In-line, water-cooled, four-stroke
Rated Engine Power kW 88.2
Rated Engine Speed r/min 2300
Engine Cooling System / Water-cooled
