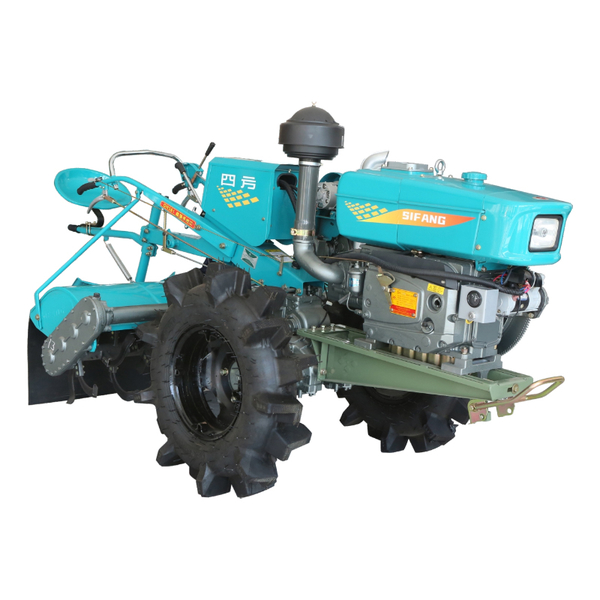

GN361 High-power Walking Tractor
Describe：
I.Sifang high-horsepower walking tractors offer significant upgrade advantages over traditional 12-15 HP walking tractors. Frame reinforcement design.Reinforced Chassis Design、Wide diesel engine compatibility range, powerful output、Wider rotary tilling width improves operational efficiency、Improved ergonomics and working environment 、Excellent working results and high efficiency.
II.Compared to 50-70 HP wheeled tractors, Sifang high-horsepower walking tractors offer a clear cost-performance advantage in southern paddy fields. Affordable Price、Low Operating Costs、Comparable Operating Efficiency、Quick Return on Purchase Investment、Flexible Operation and Easy Field Transfer — Better Suited for Small Southern Paddy Fields、Superior Anti-Sinking Performance — Adaptable to More Field Conditions.
II.Compared to 50-70 HP wheeled tractors, Sifang high-horsepower walking tractors offer a clear cost-performance advantage in southern paddy fields. Affordable Price、Low Operating Costs、Comparable Operating Efficiency、Quick Return on Purchase Investment、Flexible Operation and Easy Field Transfer — Better Suited for Small Southern Paddy Fields、Superior Anti-Sinking Performance — Adaptable to More Field Conditions.
Tel：+86-579-87214052
Parameter
| Parameter | Unit | Design Value |
| Tractor Model | / | GN361（Gongong-36）type |
| Engine Model | / | SH36M |
| Wheel Gauge | mm | Rubber wheels: 600–840；Steel wheels:880-1120 |
| Min. Ground Clearance | mm | 210 |
| Overall Dimensions (L×W×H) | mm | 3255×1640×1278 |
| Machine Structural Weight | kg | With drawbar: 512； With rotary tiller: 681 |
| Blade Shaft Speed | r/min | Low range: 225；High range: 283 |
| Theoretical Speeds | km/h | I: 1.64；II: 2.91；III: 4.90；IV: 6.06；V: 10.75 ；VI: 18.05； Rev 1st: 1.30；Rev 2nd: 4.83 |
| Plowing Parameters | / | Depth: 17–20 cm；Width: 43 cm； Implement: Two-share plow |
| Rotary Tilling Parameters | / | Depth: 12–17 cm；Width: 150 cm； Implement: Rotary tiller |
