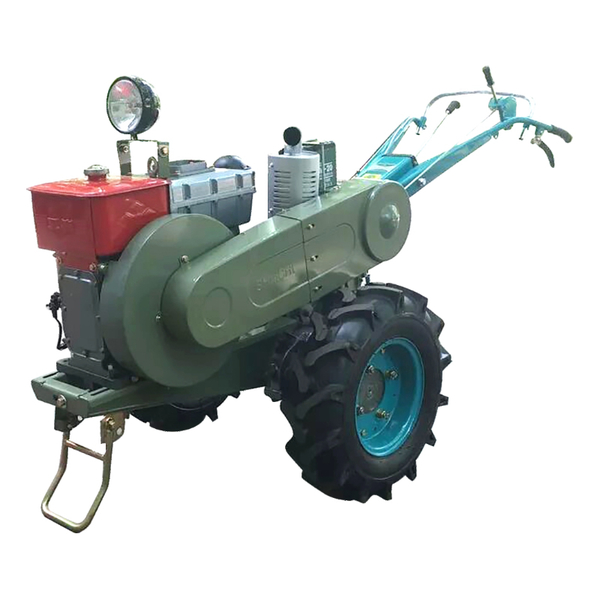

GN151 High-power Walking Tractor
Describe：
The Sifang GN151 walking tractor offers compact size, light and flexible operation, and strong practicality. It can be paired with multiple types of 195-series diesel engines. Optional riding attachments (rotary tillage riding or combined plowing-rotary riding) are available, allowing the operator to sit while performing various field operations. This reduces labor intensity and increases productivity, leading to widespread use. The machine can be equipped with plows, rotary tillers, paddy harrows, furrowers, and other implements, suitable for paddy fields, dry land, orchards, vegetable plots, and mild-slope hilly areas. It can also pull a trailer for short-distance transport and serve as stationary power for pumping, irrigation, threshing, grain and feed processing.
Tel：+86-579-87214052
Parameter
| Parameter | Unit | Design Value |
| Model | / | GN151 |
| Type | / | Single-axle, drive-and-traction combined use |
| Rated Drawbar Pull | kN | 1.6 |
| Overall Dimensions (L×W×H) | mm | With drawbar: 2340 × 980 × 1240 With rotary tiller: 2950 × 980 × 1240 |
| Standard Wheel Gauge | mm | Rubber wheels: 570~810 Steel wheels (φ800): 850~1090 |
| Drive Shaft Size (diameter × length) | / | φ45×331 |
| Min. Ground Clearance | mm | 210 |
| Min. Clearance Location | / | Bottom of gearbox assembly |
| Turning Radius | mm | 900 |
| Min. Operating Weight | kg | 371 |
| Ballast Weight | kg | No ballast |
| Number of Gears (Fwd/Rev) | / | 6/2 |
| Theoretical Speeds | km/h | I：1.53，II：2.72，III：4.67，IV：5.65，V：10.03，VI：16.83， Rev 1st: 1.21，Rev 2nd: 4.51 |
| Engine-Clutch Connection | / | V-belt drive |
| Starting Method | / | Hand crank |
