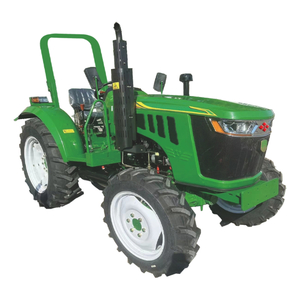

35-50 HP Wheeled Tractor Series

Describe:

SIFANG brand This tractor series, with power ranging from 35 to 50 HP, features a compact structure, high reliability, and a low failure rate. The entire set of transmission gears uses helical gears, delivering high precision, smooth transmission, low noise, and strong load capacity. Both the transmission and PTO employ sliding sleeve shifting for easy, safe, and reliable operation. The one-piece front axle has fewer connection points, good sealing, a large steering angle, and a small turning radius, resulting in flexible operation and excellent performance.
The transmission uses a sliding sleeve shift mechanism with 8 forward and 8 reverse gears for easy and effortless shifting.
It delivers strong tractive force and is equipped with a 540/720 rpm PTO speed. The split output shaft facilitates maintenance.
A two-stage clutch is standard, allowing agricultural implements to continue operating while shifting gears or stopping, delivering high operational efficiency.
Suitable for paddy fields, dry land, and grassland operations Compatible with various agricultural machines and implements.
Tel:+86-579-87214052
Parameter
Parameter Unit Design Value
Model / 354 404/454 504-2
Length mm 3350 3350 3385
Width mm 1460 1460 1500
Height mm 2350 2350 2370
Engine Rated Power kW 25.8 29.5(404)
33.1(454)
36.8
Engine Rated Speed r/min 2400 2400 2400
Front Tread mm 1200/1300
Rear Tread mm 1130/1230/1330/1430
Max. Drawbar Pull kN ≥10.7 ≥11.0(404)
≥11.5(454)
≥11.8
Max. Lift Force kN ≥5.95 ≥6.64(404)
≥7.45(454)
≥8.28
