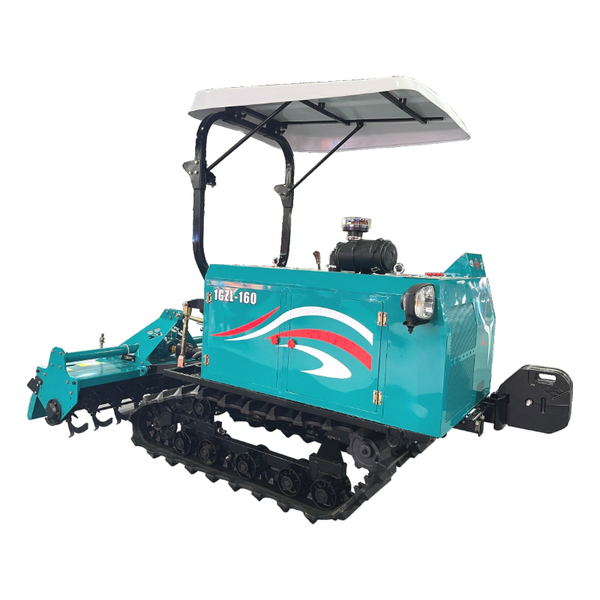

1GZL-160 Crawler Rotary Tiller

Describe:

SIFANG brand 1GZL-160 Crawler Rotary Tiller features Standard with a Dezhou 50 HP China Stage IV four-cylinder diesel engine.The undercarriage adopts a bogie-type wheel system with optimized oil seals. To accommodate the four-cylinder diesel engine, the track gauge has been widened to 900 mm.Longer tracks are standard at 350 mm × 90 mm × 46 sections, delivering even lower ground pressure. Ground clearance reaches 320 mm, providing excellent trafficability.The transmission integrates HST (hydrostatic transmission), reducing shift frequency for a better driving experience.Integrated electronic control valve + electronic control handle. Steering uses a mechanical connection for reliable operation; implement lift/lower uses an electronic push-button for convenience. A hydraulic output valve for mounting implements can be configured based on market demand


Tel:+86-579-87214052
Parameter
Parameter Unit Design value
Model / 1GZL-160
Engine Model / DC4D50-40
Rated Power HP 50(36.8kW)
Speed r/min 2400
Overall Dimensions (L×W×H) mm 3500×1720×1600
PTO Speed r/min 570
Operating Speed m/s Low:0-1.25;Mid:1.77;High:2.4
Track Gauge mm 900
Track Pitch mm 90
Number of Track Links / 46
Track Width mm 350
Tilling Width mm 1500/1600
Tilling Depth cm 80-130
Ground Contact Area 1.029
Rotary Blade Type / Type II S-225 series
Number of Rotary Blades / left and right blades each
Blade Shaft Speed r/min 258
