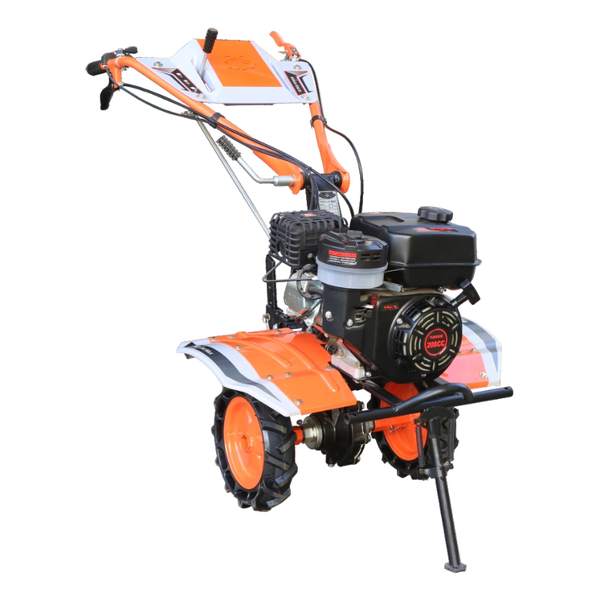

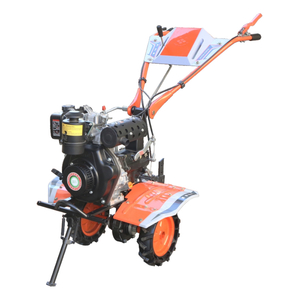

1WGQZ4.05 Micro-tiller Series
Describe：
SIFANG brand 1WGQZ4.05 Micro-tiller Series features Wide Application: Suitable for farmland, orchards, greenhouses, and hilly/mountainous terrain.Versatile.Functions: Capable of rotary tilling, furrowing, weeding, and transport operations. Easy Operation: Light overall weight, low center of gravity, and easy, flexible steering. Easy Maintenance and Transport: Modular design allows easy disassembly/assembly, maintenance, and transport. Modern Appearance: Professionally designed exterior that is both practical and aesthetically pleasing. Safe Operation: Fully enclosed rotating parts design for convenience and safety.
Tel：+86-579-87214052
Parameter
| Parameter | Unit | Design Value | |
| Model | / | 1WGCZ4.05-105 Mini Tiller (Kylin Model) | 1WGQZ4.05-95A Mini Tiller (Pingtouge Model) |
| Type | / | Hand-held | Hand-held |
| Engine Model | / | KAGF320 | WG170F/P |
| Engine Rated Power | kw | 4.05 | 4.0 |
| Engine Rated Speed | r/min | 3600 | 3600 |
| Engine Starting Method | / | Recoil start | Recoil start |
| Engine Fuel Type | / | Diesel | Gasoline |
| Overall Dimensions (L×W×H) | mm | 1500×960×1000 | 1500×960×1000 |
| Operating Speed | m/s | 0.1~0.3 | 0.1~0.3 |
| Handle Vibration | m/s² | ≤50 | ≤50 |
| Hourly Field Capacity | h㎡/(h m) | ≥0.04 | ≥0.04 |
| Fuel Consumption per Unit Area | kg/h㎡ | ≤35 | ≤35 |
| Working Width | mm | 1050 | 950 |
| Engine Power Transmission | / | Direct-coupled | Direct-coupled |
| Tine Rotor Drive | Gear drive | Gear drive | |
| Handle Adjustment (Horizontal) | （⭕） | / | / |
| Handle Adjustment (Vertical) | 115 | 115 | |
| Tine Rotor Design Speed | r/min | High: 130；Low: 93；Rev: 68 | High: 130；Low: 93；Rev: 68 |
| Tine Rotor Max. Radius | mm | 180 | 180 |
| Total Number of Tines | / | 24 | 24 |
| Rotary Blade Type | / | Dryland blade | Dryland blade |
| Main Clutch Type | / | Friction disc | Friction disc |
| Main Clutch Status | / | Normally open | Normally open |
| Paddy Wheel Type | / | / | / |
| Paddy Wheel Diameter | mm | / | / |
