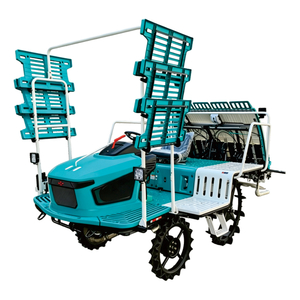

6-row 30cm Mulch-covered Rice Transplanter
SIFANG brand 6-row 30cm Mulch-covered Rice Transplanter features Powerful yet Lightweight Engine: Equipped with a 25.2 HP engine weighing only 84 kg. The power unit is both powerful and light, allowing it to carry more seedlings for doubled efficiency. Quick-Change Film Frame Design: Patented film frame technology enables one person to easily replace a 2m-wide film roll, significantly reducing labor costs.Precise, Smooth Film Mulching: Self-adaptive floating leveling roller adapts perfectly to uneven field surfaces, ensuring smooth, wrinkle-free film mulching even at high speeds.Stable, Disturbance-Resistant Film Pressing: Rigid film press roller design ensures sufficient pressing depth and tight film-to-soil contact, keeping the film secure against wind and water flow.Precision Linked Transplanting: Patented hole-punching technology coordinates hole formation and transplanting with precision, ensuring each seedling is planted in the optimal position.
| Rice transplanter manufacturer | Zhejiang Sifang Group Co., Ltd | |||
| Rice transplanter model | 2ZM-6 | |||
| Working state dimensions L×W×H(mm) | 3500X2320X2310 | |||
| Structural mass(kg) | 820 | |||
| Engine | Power machine structure type | In-line 3-cylinder water-cooled four-stroke diesel engine | ||
| Power machine rated power(kW (PS) / rpm) | 18.5（25.2）/2800 | |||
| Total exhaust volume(L) | 1.123 | |||
| Fuel type | No. 0 premium diese | |||
| Fuel tank capacity(L) | 40 | |||
| Starting method | Starter motor | |||
| Storage battery | Voltage(V) | 12 | ||
| Mass(kg) | 84 | |||
| layout | Front | |||
| Fuel consumption per unit of work(kg/h㎡) | ≤18 | |||
| Traveling | Wheel | Structural type | Front wheel | Solid rubber wheel |
| Rear wheel | Solid rubber flange wheel | |||
| Diameter(mm) | Front wheel | φ650 | ||
| Rear wheel | φ950 | |||
| wheel track (mm) | Front wheel | 1200 | ||
| Rear wheel | 1200 | |||
| Wheelbase(mm) | 1200 | |||
| Drive type | 4-wheel drive | |||
| Speed change method | Hydraulic Stepless Transmission(HST) | |||
| Variable series | Variable speed 2nd gear | |||
| Planting speed(m/s) | 0~1.7（0~6.12km/h） | |||
| Transplanting position | Transplanting arm type | Rotary type | ||
| Number of work rows | 6 | |||
| Row space(mm) | 300 | |||
| Hill space(mm) | 120、140、160、180、210、250、 | |||
| Type of hill Space adjustment mechanism | Handle adjustment | |||
| Hill space adjustment position(number) | 6 | |||
| Planting depth(mm) | 20~50(5 Positions) | |||
| Number of seedlings per hill adjustment | Cross feed(mm) / time | 14/20、15.5/18、20/14 | ||
| Vertical transplanting distance(mm) | 10~20(10 Positions) | |||
| Transplanting frequency(hills/minute) | 0~800(Per row) | |||
| Balance mechanism type | Electric type | |||
| Seedling tray rack(unit) | 6 | |||
| Output per hour(h㎡/h)/(Mu/h) | 0.25~0.5/（3.75~7.5） | |||
| Mulching | Applicable mulch types | Environmental friendly degradable mulch (compliant with GB/T 35795) | ||
| Mulch width(mm) | 2000~2050 | |||
| Outer diameter of mulch roll(mm) | ≤110 | |||
| Inner diameter of mulch roll(mm) | 25~35 | |||
