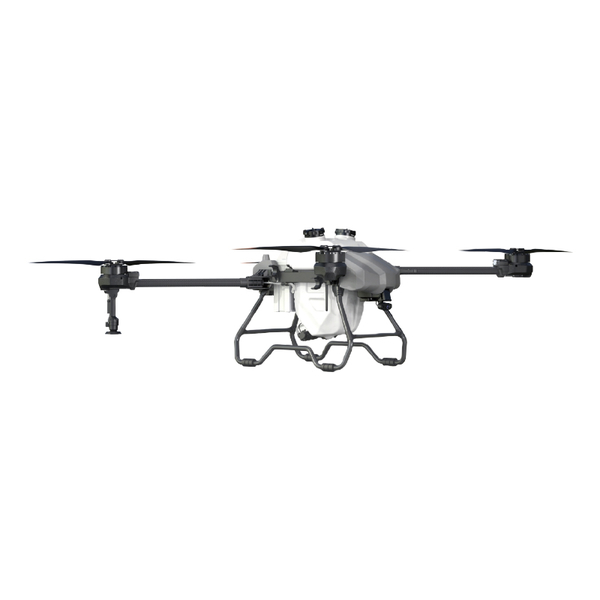

HV50 Intelligent Plant Protection Drone
Describe：
SIFANG brand The HV50 Intelligent Plant Protection Drone features a 50L spray tank and 80L spreading capacity, enabling full-scenario operations and efficiently improving agricultural production efficiency and solutions.
Tel：+86-579-87214052
Parameter
Basic Parameters
| Item | Unit | Item | Unit |
| Unfolded Dimensions | 1905*1720*815mm | Folded Dimensions | 635*1340*815mm |
| Wheelbase | 2300mm | Load Capacity | 50L |
| Weight (Excl. Battery) | 35kg | Takeoff Weight | 99kg |
| Spreader Hopper Capacity | 80L | Material | PE、PP、 PA+GF、Aluminium alloy |
Flight Parameters
| Item | Unit | Item | Unit |
| Battery Capacity | 18S 30000Ah | Operating Voltage | 75.6V（18S） |
| Ascent Speed | 5m/s | Flight Speed | 5-10m/s |
| No-Load Flight Time | 18min | Full-Load Flight Time | 7min |
Spray Parameters
| Item | Unit | Item | Unit |
| Nozzle | Centrifugal Nozzle | Effective Spray Width | 6-10m |
| Spray Flow Rate | 12L/min | Hourly Coverage | 70 mu (4.7 ha) |
Packaging Parameters
| Item | Unit | Item | Unit |
| Frame Case Dimensions | 990*705*395mm | Frame Case Weight | 24kg |
| Power Case Dimensions | 705*405*235mm | Power Case Weight | 19kg |
| Spray Tank Case Dimensions | 675*405*365mm | Spray Tank Weight | 5.6kg |
| Spreader Case Dimensions | 720*560*475mm | Spreader Weight | 6.4kg |
| Complete Unit Case Dimensions | 1400*720*870mm | Complete Unit Case Weight | 50.5kg |
