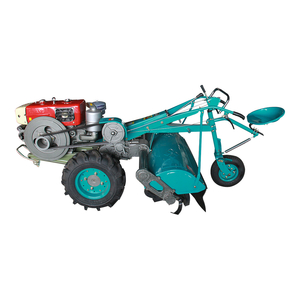

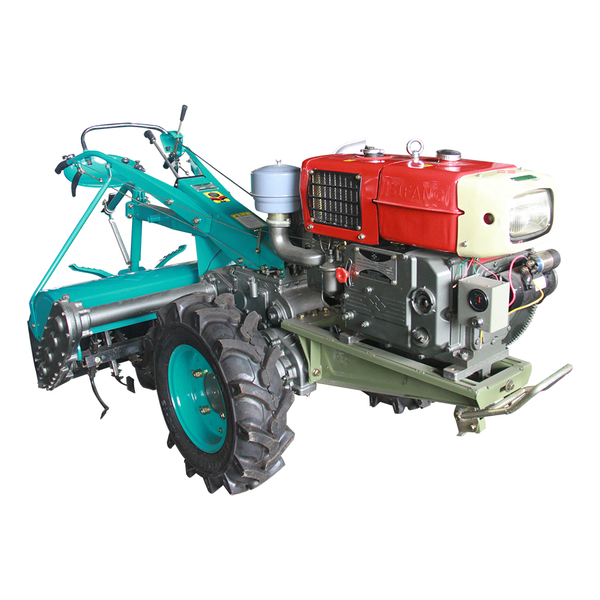

Walking Tractor GN201

Describe:
SIFANG brand Walking Tractor Model GN121 is designed for pulling and driving. The model features output at high and low speed, compactness and simplicity of construction, easy control and steering, light weight, rugged durability and reliability. It is suitable for working in dry and paddy field, orchard and slightly hilly land completed with driver’s seat and farm implements, such as plough, rotary tiller, disc plough, ditcher and harvester etc. Walking Tractor Model GN121 can also be used as transportation vehicle matched with trailer and as a power in the rural area for stationary work such as pumping, spraying, feed grinding, flour milling and trenching etc.
Tel:+86-579-87214052
Parameter

MODEL

GN201

ENGINE MODEL

S1115NM-2

RATED OUTPUT

16.2KW/2200R/MIN

WEIGHT

KGS

WHEELBASE

Rubber wheel:570~810MM   Iron wheel:850~1090 MM

MIN GROUD CLEARANCE

210 MM

OVERALL DIMENSIONS(L x W x H)

2100×870×1150MM

TYRE SIZE

6.00-12

TILLING WIDTH

1200mm

Speed of Walking Tractor

Forward

Reverse

1st

2nd

3rd

4th

5th

6th

1st

2nd

2.19

3.13

4.71

9.55

13.65

20.56

1.64

7.15
