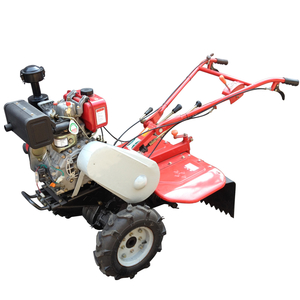

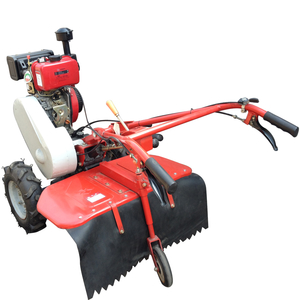

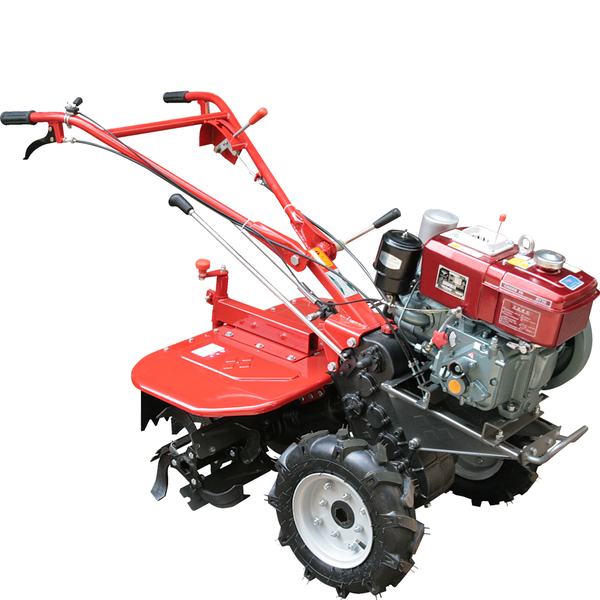

Cultivator 1Z-20
Describe：
SIFANG brand Cultivator Model 1Z-20 is characterized by small stature and light weight. It is suitable for working in dry fields completed with rotary tiller. It is widely used in vegetable fields, greenhouses and sheds.
Tel：+86-579-87214052
Parameter
MODEL | 1Z-20 |
TYPE | Double wheel drive, gear transmission |
ENGINE MODEL | TR175B |
RATED OUTPUT | 4.2KW(5.5HP) |
MIN GROUD CLEARANCE | 118MM |
WEIGHT | 165 KGS |
DIMENSIONS(L x W x H) | 1656×820×950 MM |
TYRE SIZE | 4.00-8 |
TILLING BLADE ROTATING RADIUS | 167.5 MM |
TILLING BLADE RATOTING SPEED | 192 R/MIN |
CLUTCH TYPE | Single-action, dry, Connecting disc. |
PRODUCTION EFFICIENCY(hm²/h) | ≥0.05 |
FUEL CONSUMPTION(L/hm²) | ≤14.00 |
TILLING WIDTH（MM） | 600-800 MM |
TILLING DEPTH（MM） | 80-160 MM |
