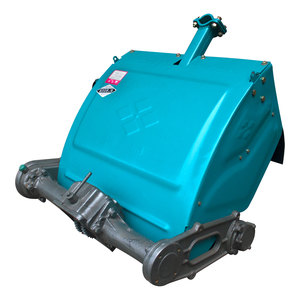

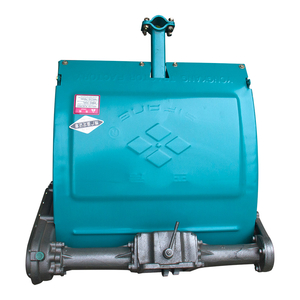

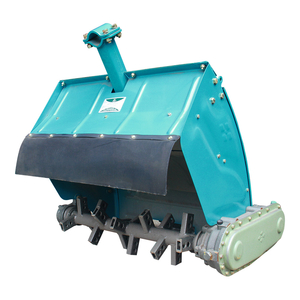

Walking Tractor GN151
Describe：
Walking Tractor Model GN151 is a strengthened variety model in chassis and power output based on GN121 so that the productivity can be greatly raised. Besides, it is also an improved for some special agronomic need in some districts based on GN121 by increasing wheelbase and minimum ground clearance.
Tel：+86-579-87214052
Parameter
MODEL | GN151 | GN151 |
ENGINE MODEL | SH17N | S1100N |
RATED OUTPUT | 12.13KW/2200R/MIN | 11.03KW/2200R/MIN |
WEIGHT | 380 KGS | |
WHEELBASE | 570,1090 MM | |
MIN GROUD CLEARANCE | 210 MM | |
OVERALL DIMENSIONS(L x W x H) | 2950 x 980 x 1240 MM | |
TYRE SIZE | 6.00-12 | |
TILLING WIDTH | 700mm,900 mm | |
Speed of Walking Tractor | |||||||
Forward | Reverse | ||||||
1st | 2nd | 3rd | 4th | 5th | 6th | 1st | 2nd |
1.53 | 2.72 | 4.57 | 5.56 | 10.03 | 16.83 | 1.21 | 4.51 |
