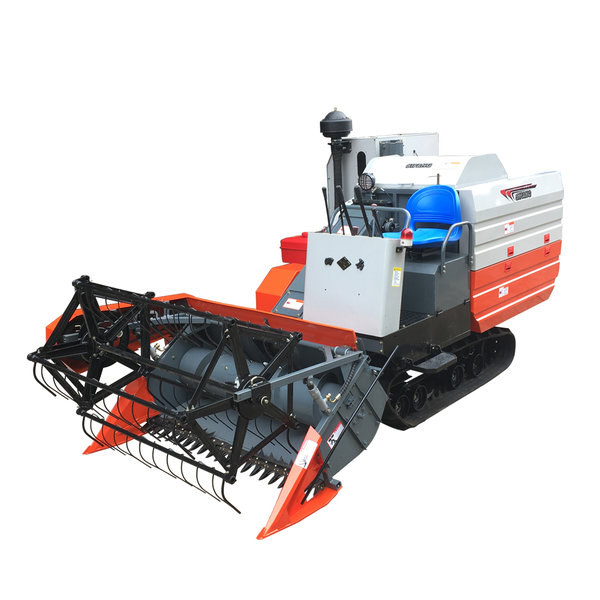

4LZ-1.5E Combine Harvester
Describe：
SIFANG brand Combine Harvester Model 4LZ-1.5E is a newly developed whole-feed combine harvester for rice and wheat. It features the following outstanding advantages:
1. The ground pressure is lees for its wider rubber track.
2. It can pass to another field easier with higher ground clearance.
3. The labor force can be saved with larger grain tank at capacity 200kgs.
4. It is more suitable for harvesting with bigger four-bar reel.
5. The grain can be more cleaner with adjustably double sieving system.
6. The maintenance can be done conveniently by easily opening protective cover.
7. The hydraulic reel is equipped on the combine harvester.
1. The ground pressure is lees for its wider rubber track.
2. It can pass to another field easier with higher ground clearance.
3. The labor force can be saved with larger grain tank at capacity 200kgs.
4. It is more suitable for harvesting with bigger four-bar reel.
5. The grain can be more cleaner with adjustably double sieving system.
6. The maintenance can be done conveniently by easily opening protective cover.
7. The hydraulic reel is equipped on the combine harvester.
Tel：+86-579-87214052
Parameter
| DODEL | 4LZ-1.5E | |
| TYPE: | SELF-PROPELLED WHOLE-FEEDING | |
| ENGINE MODEL | SF1125M-2 / SH28N | |
| ENGINE OUTPUT | 20KW (27HP) / 2200 R / MIN | |
| NET WEIGHT | 1500 KGS | |
| DIMENSION (L X H X H) | 3980 X 1880 X 1950 MM | |
| RATED FEED CAPACITY | 1.5KGS / S | |
| CUTTING WIDTH | 1420 MM | |
| RUBBER TRACK SPECIFICATION | 90MM X 40LINKS X 320MM | |
| GROUND CLEARANCE | 240MM | |
| MAIN PERFORMANCE INDEX | WHEET | RICE |
| PRODUCTION EFFICIENCY (hm³/h) | 0.06~0.20 | |
| FUEL CONSUMPTION | ≦25 kg/hm2 | |
| TOTAL LOSS RATE | ≦1.2 | ≦3.0 |
| IMPURITY RATE | ≦2.0 | ≦2.0 |
| CRUSHING RATE | ≦1.0 | ≦1.5 |
