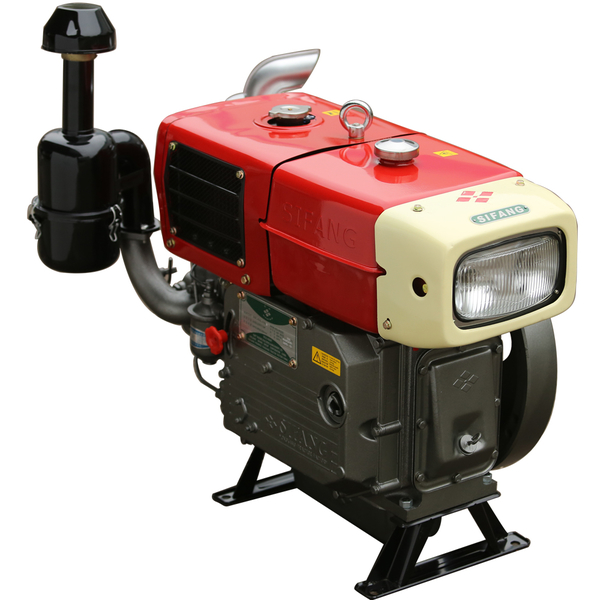

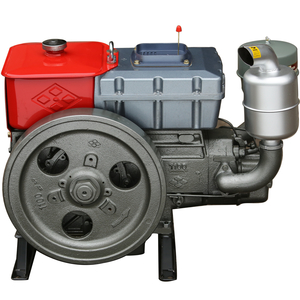

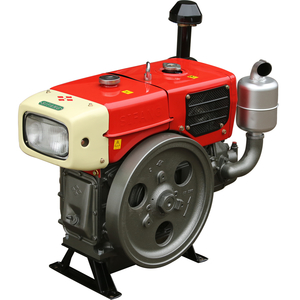

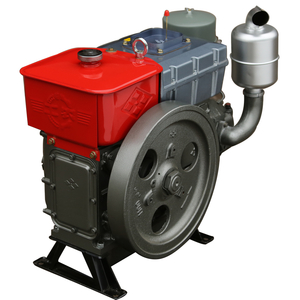

S ZS series diesel engine
Describe：
SIFANG brand diesel engine S ZS series products take the same type of horizontal, single-cylinder, four-stroke diesel engine. They feature compactness and simplicity of construction, rugged durability, easy operation, installation and maintenance.
They can be used as a power of walking tractor, transport vehicle, boat, electric generating sets, pump, sprayer, threshing, feed grinding and flour milling machine etc. We can supply their variety models with condenser or evaporation and electric start with lamp as you need.
Tel：+86-579-87214052
Parameter
| S195G | |||||
| MODEL | S195G | S195GN | S195GNM | ZS195G | |
| TYPE | Horizontal,Single Cylinder,Four-Stroke | ||||
| Injection | Swirl Chamber | Direct Injection | |||
| Bore×stroke(mm) | 95×115 | ||||
| Total displacement(L) | 0.815 | ||||
| Compression ratio | 20 | 17 | |||
| Rated output(kw/r/min) | 9/2000 | ||||
| Fuel consumption rate(g/kw/h) | ≤258.4 | ≤265.2 | ≤244.8 | ||
| Cooling system | Evaporation | Condenser | Condenser | Evaporation | |
| Overall dimensions(mm) | 920×500×600 | ||||
| Net weight(kg) | 140 | 150 | 160 | 140 | |
| Starting | Hand cranking | Hand cranking | Electric start | Hand cranking | |
| S1100 | |||||
| MODEL | S1100 | S1100N | S1100NM | ZS1100 | |
| TYPE | Horizontal,Single Cylinder,Four-Stroke | ||||
| Injection | Swirl Chamber | Direct Injection | |||
| Bore×stroke(mm) | 100×115 | ||||
| Total displacement(L) | |||||
| 0.903 | |||||
| Compression ratio | 20 | 17 | |||
| Rated output(kw/r/min) | 12.1/2200 | 12.1/2200 | 12.1/2200 | 12.1/2200 | |
| Fuel consumption rate(g/kw/h) | ≤257 | ≤263.8 | ≤263.8 | ≤246.2 | |
| Cooling system | Evaporation | Condenser | Condenser | Evaporation | |
| Overall dimensions(mm) | 920×500×600 | ||||
| Net weight(kg) | 145 | 155 | 165 | 145 | |
| Starting | Hand cranking | Hand cranking | Electric start | Hand cranking | |
| S1110 | |||||
| MODEL | S1110 | S1110N | S1110NM | S1110NM-2 | |
| TYPE | Horizontal,Single Cylinder,Four-Stroke, Direct Injection | ||||
| Bore×stroke(mm) | 110×115 | ||||
| Total displacement(L) | 1.093 | ||||
| Compression ratio | 17 | ||||
| Rated output(kw/r/min) | 14.56/2200 | ||||
| Fuel consumption rate(g/kw/h) | ≤244.8 | ||||
| Cooling system | Evaporation | Condenser | Condenser | Condenser | |
| Overall dimensions(mm) | 858×450×680 | ||||
| Net weight(kg) | 180 | 185 | 195 | 200 | |
| Starting | Hand cranking | Hand cranking | Electric start | Electric start | |
| S1115 | |||||
| MODEL | S1115 | S1115N | S1115NM | S1115NM-2 | |
| TYPE | Horizontal,Single Cylinder,Four-Stroke, Direct Injection | ||||
| Bore×stroke(mm) | 115×115 | ||||
| Total displacement(L) | 1.194 | ||||
| Compression ratio | 17 | ||||
| Rated output(kw/r/min) | 16.18/2200 | ||||
| Fuel consumption rate(g/kw/h) | ≤242.1 | ||||
| Cooling system | Evaporation | Condenser | Condenser | Condenser | |
| Overall dimensions(mm) | 858×450×680 | ||||
| Net weight(kg) | 185 | 190 | 200 | 205 | |
| Starting | Hand cranking | Hand cranking | Electric start | Electric start | |
| SF1125 | |||||
| MODEL | SF1125 | SF1125NM | SF1125M-2 | ||
| TYPE | Horizontal,Single Cylinder,Four-Stroke, Direct Injection | ||||
| Bore×stroke(mm) | 125×120 | ||||
| Total displacement(L) | 1.473 | ||||
| Compression ratio | 17.6 | ||||
| Rated output(kw/r/min) | 19.85/2200 | ||||
| Fuel consumption rate(g/kw/h) | ≤244.8 | ||||
| Cooling system | Evaporation | Condenser | Condenser | ||
| Overall dimensions(mm) | 810×466×685 | ||||
| Net weight(kg) | 190 | 205 | 210 | ||
| Starting | Electric start | Electric start | Electric start | ||
| ZS1130 | |||||
| MODEL | ZS1130 | ZS1130M-2 | |||
| TYPE | Horizontal,Single Cylinder,Four-Stroke, Direct Injection | ||||
| Bore×stroke(mm) | 130×120 | ||||
| Total displacement(L) | 1.592 | ||||
| Compression ratio | 17 | ||||
| Rated output(kw/r/min) | 22.1/2200 | ||||
| Fuel consumption rate(g/kw/h) | ≤244.8 | ||||
| Cooling system | Evaporation | ||||
| Overall dimensions(mm) | 810×466×685 | ||||
| Net weight(kg) | 215 | 220 | |||
| Starting | Electric start | Electric start | |||
