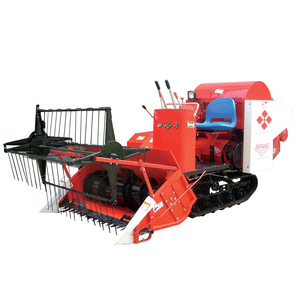

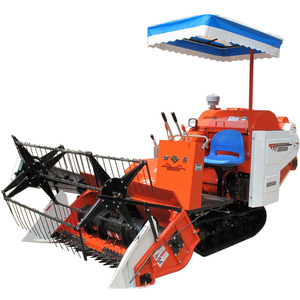

4LZ-1.5 Combine Harvester
Describe：
SIFANG brand Combine Harvester Model 4LZ_1.5 is a newly developed whole-feed for wheat and rice. It features easy operation and light weight, it is a economic machine with low price and low fuel consumption. The performance is reliable and stable. Its engine is fixed outside so that maintenance can be done conveniently. It has more options in engine, cutting platform, reel, grain tank, etc.
Tel：+86-579-87214052
Parameter
DODEL | 4LZ-1.5 | |
TYPE: | SELF-PROPELLED WHOLE-FEEDING | |
ENGINE MODEL | S1115NM-2 | |
ENGINE OUTPUT | 19.8kw /2200 R/MIN | |
NET WEIGHT | 1200 KGS | |
DIMENSION (L X H X H) | 3870 X 1650 X 1900 MM | |
RATED FEED CAPACITY | 1.5 KGS/S | |
CUTTING WIDTH | 1360 MM | |
RUBBER TRACK SPECIFICATION (Caterpillar width/Link distance/Tooth quantity/Gauge) | 280×90×38 LINKS×780（mm） | |
GROUND CLEARANCE | 200MM | |
MAIN PERFORMANCE INDEX | WHEET | RICE |
PRODUCTION EFFICIENCY (h㎡/h) | 0.06~0.2 | |
FUEL CONSUMPTION | ≦22 kg/hm2 | |
TOTAL LOSS RATE | ≦1.2 | ≦3.0 |
IMPURITY RATE | ≦2.0 | ≦2.0 |
CRUSHING RATE | ≦1.0 | ≦1.5 |
